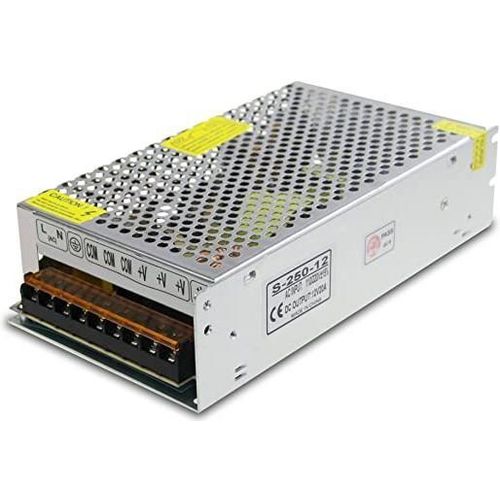

CCTV Power Supply 12V 20A (Open Type)
CCTV Power Supply 12V 20A (Open Type)
-17%
Product Description
CCTV Power Supply 12V 20A (Open Type)
Description
| Item model number | AL12V20AT |
| Current Rating | 20 Amps |
| Mounting Type | Wall Mount |
| Power Source | Dc 12v |
| Is Discontinued By Manufacturer | No |
| Product Dimensions | 4.33″D x 7.87″W x 1.96″H |
| Item Weight | 1.32 pounds |
| Specification Met | CCC, FCC |
| Size | 12V 20A 240W |
- Input: 110V/220V AC; Output: DC 12V 20A max. Output voltage is adjustable 15%. Three sets of output Channel.
- Safety features: Automatic overload cut-off, over Voltage cut-off, automatic thermal cut-off, short circuit protection.
- Voltage consistency: There is no voltage fluctuations to speak of at power on, during transmit, receive, or at power off.
- There is no fan inside the case, silent running. Metal case with many holes makes heat dissipation more efficient.
- Great for LED Strips, 3D Printer, ham radio transceiver, CCTV cameras ，car subwoofer amp, audio amplifier, wireless router, ADSL Cats, HUB, audio/ video power supply. Indoor use only!
- Kindly Not: Power cord is NOT included. If you need, please buy it by Searching product ASIN B07CWS4BGC on Amazon.
Product description
Parameter
- Input: AC 100V~120V / 200V~260V 50/60Hz
- Output Voltage : DC 12V ( ±10% adjustable, 10.2V~13.8V)
- Output Current: 20A max
- Output Wattage: 240W max
- Fix Screw Hole Diameter: 2.5mm (0.1inch)
- Working temperature: -10℃ ~50℃ （-50 ℉ ~ 122℉）
- Storage temperature: -20℃ ~ 60℃ （-68 ℉ ~ 140℉）
- Environmental humidity: 10-95%
- Safety Compliance: FCC / CE /Rohs
Kindly note
- We suggest the max use of power should be no more than 80% of the full loads, otherwise,the power supply’s spanlife will be shortened. We recommend you to use this 12V 20A 240W power supply to power devices less than 192W.
- 110V/220V must be selected by switch before using to avoid damaging. Please change the switch to 110V for USA/CA and 220V for EUR.
Package included
- 1 x 12V 20A Power Supply (Power cord is NOT included.)
Superior Safety
Built-in safeguards to protect against over voltage, over current, overheat, short-circuit, which will provide ultimate protection for you and your devices.
Premium Quality
The shell is made of aluminum. Cellular structure design can enhance air convection and speed up heat dissipation. Premium quality materials make it more solid and durable.
±10% Voltage Adjustment
The output voltage can be regulated by ±10%, from 10.8V to 13.2V, which greatly expand its application range. It can supply with any current ( less than 20A) your device draws, such as 5A, 10A, 15A, 20A.
Three Output Channels
With three independent output channels, it can power more devices. The maximum output of each channel can reach 20A 240W. Total output power of the three channels is 20A 240W.
Stable Output
Built-in advanced synchronous rectifier smart chip and EMI filter, convert fluctuating voltage to stable voltage, effectively reduce electromagnetic interference.
Warning!
110V/220V must be selected by switch before using to avoid damaging. Please change the switch to 110V for USA/CA and 220V for EUR.
